Fiber Array
光纤阵列（FA）是一种将多根光纤或光纤带精确排列在具有V形槽（V-Grooves）的基板上而构成的光学器件。这种结构可确保光纤芯的精确定位，从而最大限度地减少连接损耗并实现高密度光信号传输。
-
≤0.30dB插入损耗
-
3~5mmFA长度
vs
加入对比
- 1CH
- 2CH
- 3CH
- 4CH
- 8CH
- 16CH
-
产品优势
-
产品应用
-
产品参数
-
应用解决方案
产品优势
-
多角度端面可选，满足多种连接需求

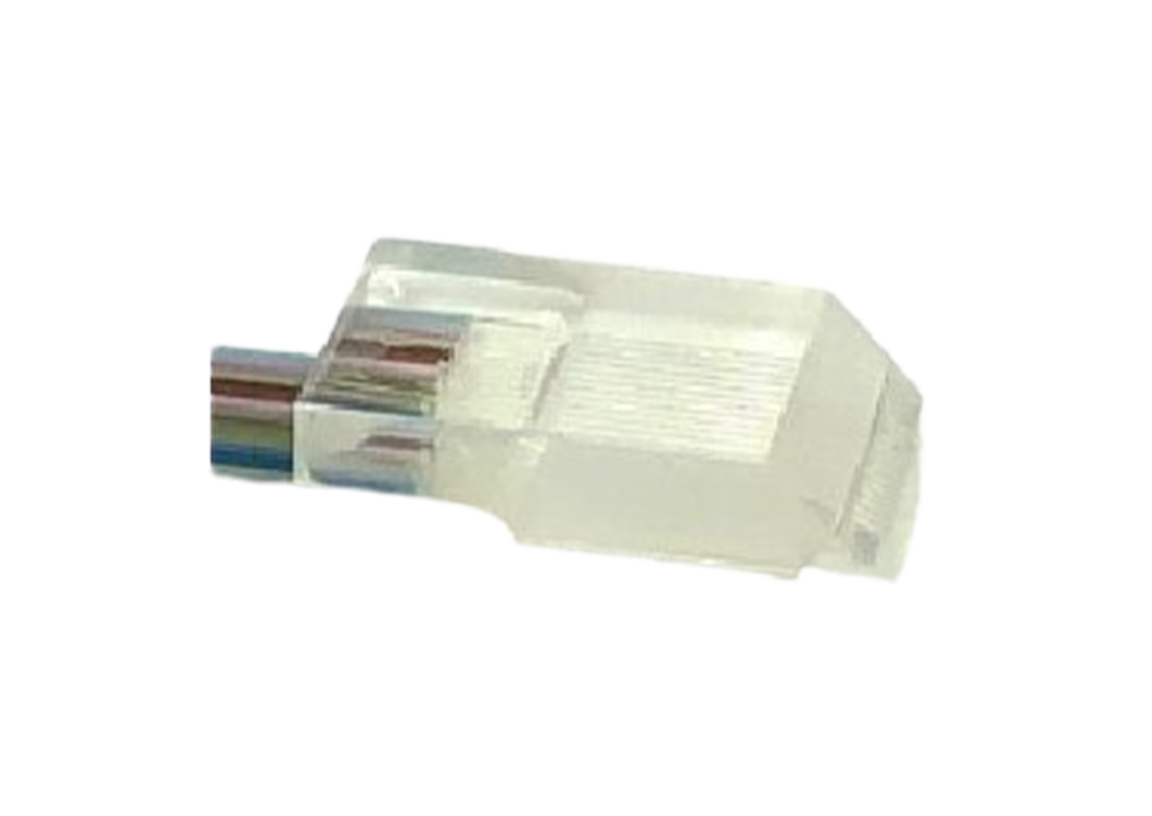

支持0°/8°/41°/42.5°/45°等多种角度定制，灵活适配不同光路系统，提升连接兼容性与应用多样性。
-
多规格间距灵活配置，满足客户定制
光纤间距可选125/250/500/750μm，支持±0.1mm精度间距公差，精准匹配多场景封装工艺要求。
-
多类型光纤兼容，适配广泛应用
兼容SMF28e/G657A1/G657A2/MM/PM等多种光纤类型，覆盖从通信模块到光子芯片封装的多领域需求。
-
高速传输，低功耗，稳定可靠
具备高传输速率、低能耗等优势，兼具优异的稳定性与长期可靠性，助力高速光通信系统高效运行。
产品应用
-
应用于HDMI, AOC
-
平行光传输
-
应用于QSFP, QSFP+, SR, SNAP12
-
高速硅光收发器模块
-
应用于AWG/WSS/VMUX/OCM/MCS
产品参数
系列型号
-
1CH
-
2CH
-
3CH
-
4CH
-
8CH
-
16CH
-
FA Pitch(um)
-
FA Pitch Accuracy(um)
-
Small Die Spot Size(um)
-
IL(max)(dB)
-
FA Length(mm)
-
PER(min)(dB)
-
1CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)/
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
2CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.5
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
3CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.5
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
4CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.5
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
8CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.7
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
16CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±1.0
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
